AIGROW
A feedback-driven generator for bit-level HWMC problems.
Together with Yicong Xu, Wenjing Deng, we implemented a HWMC problem generator AIGROW.
AIGROW is a novel framework for generating compact yet challenging hardware model checking (HWMC) benchmarks.
Traditional benchmark sets (e.g., HWMCC) are large and complex, making it difficult to diagnose why model checkers differ in performance. Existing generators such as AIGFUZZ and AIGEN often produce either trivial or overly large problems, limiting their diagnostic value.
AIGROW addresses these issues with a runtime-guided generation process:
- Uses solving time and safety status as feedback to evolve problems.
- Produces small circuits (often <250 components) that remain hard to solve.
- Selectively retains cases that expose performance differences among checkers.
Key Contributions
- Benchmarks up to 100× smaller than those from existing tools while remaining equally challenging.
- Enabled the diagnosis of inefficiencies in state-of-the-art CAR-based checkers.
- Led to concrete optimizations, including solving 18 previously unsolved HWMCC’24 problems.
- Demonstrated how tiny generated problems can reveal algorithmic weaknesses and inspire breakthroughs.

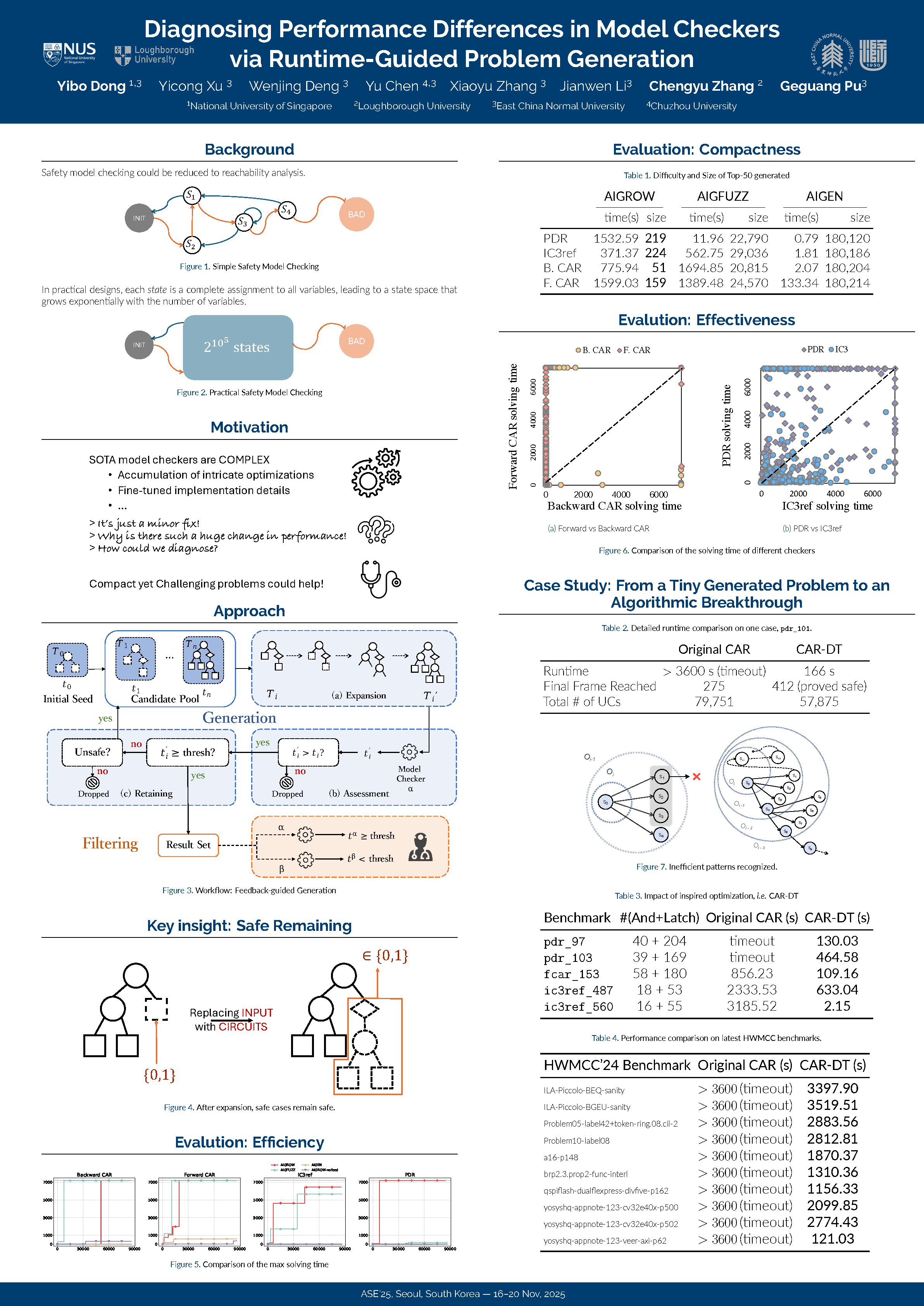

Resources
This work highlights how compact, feedback-guided benchmarks can accelerate understanding, debugging, and advancing hardware model checkers.
